Fire Fighting Equipment

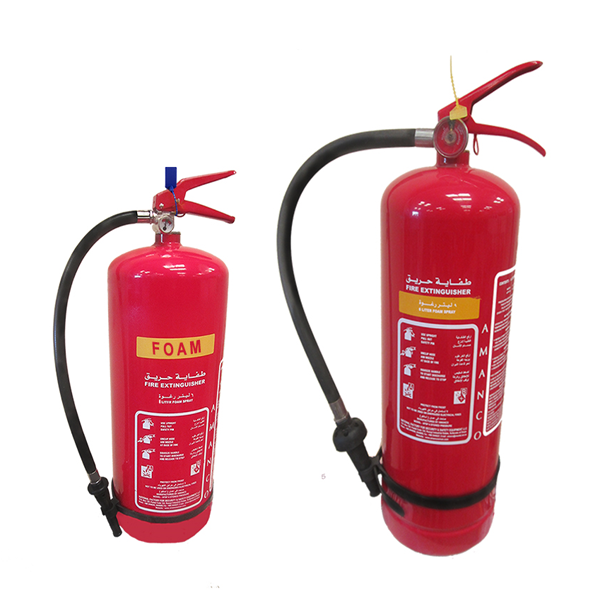

am

Features

• Ready for instant use
• Exceptionally effective on class A & B fire
• Manufactured as per BS EN-3 standard.
• Portable and compact design • Heavy duty steel cylinder
• Made of special CRCA sheet with argon / CO2 welding process
• Simple operation and maintenance
• Cylinder are 100% factory tested to 30 bar
• Easy grip valve for comfortable operation
• Nickel plated brass valve with reliability and long life
• Rugged PVC pick up tube enable smooth flow of the agent.
• Precision built mechanical pressure gauge
• Electrostatic powder painting after shot blasting ensures maximum corrosion resistance
• Internally coated with polyolefin & thermosetting polymer powder using whirl sintering process

Model No AFSP1 AFSP2 AFSP6 AFSP9
Extinguisher Capacity 1 ltr 2 ltr 6 Ltrs 9 Ltrs
Operating Temperature +5˚C to + 60˚C
Propellant Nitrogen
Working Pressure 14 Bar 14Bar 15Bar15Bar
Test Pressure 30 Bar
Total Weight 1.8Kg 3.7Kg 11Kg 15.5kg
Range of Discharge 2m 2m 6-8m 8-9m
Duration of Discharge 7-9sec 8-12sec 16-20sec 22-24sec
Download

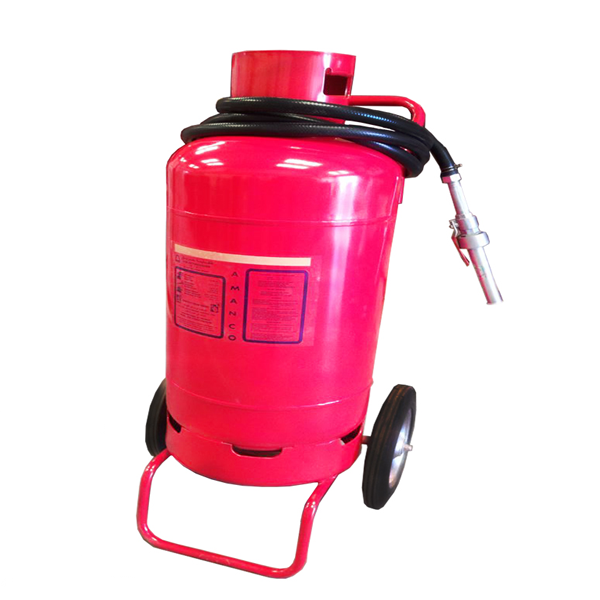

am

Features

• Ready for instant use and simple to operate
• Exceptionally effective on class A & B fire
• Cart and cylinder are made of rugged steel and welded to meet extreme use conditions
• Simple operation and maintenance
• Cylinder are 100% factory tested to 30 bar
• Highly visible pressure – indicating gauge
• Nickel plated brass valve with reliability and long life
• Rugged PVC pick up tube enable smooth flow of the agent.
• Electrostatic powder painting after shot blasting ensures maximum corrosion resistance
• Internally coated with polyolefin & thermosetting polymer powder using whirl sintering process
• Label in Arabic and English language

Model No ATS25 ATS50
Extinguisher Capacity 25ltrs 50Ltrs
Operating Temperature 5˚C to + 60˚C
Working Pressure 15 BAR
Test Pressure 30 BAR
Total Weight 55Kg 95Kg
Range of Discharge 7-8m 7-8m
Duration of Discharge 25-30sec 50-55sec

Download

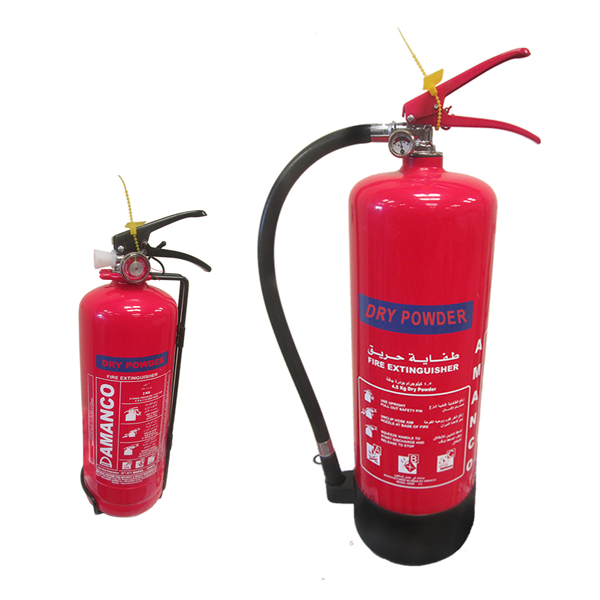

am

Features

• Manufacturing Standard is BS EN3
• Ready for Instant use.
• Highly effective on Class A, B, C & Electricals Fires.
• Heavy duty steel cylinder
• Made of special CRCA sheet with argon / CO2 welding process
• Simple operation and maintenance
• Cylinders are 100 % factory tested to 30 Bar
• Squeeze grip valve for comfortable operation
• Nickel Plated Brass Valve with reliability and long life
• Rugged PVC pick up tube enables smooth flow of the agent
• Precision built mechanical pressure gauge.
• Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.
• Labels in Arabic and English language.

Model No ADSP1 ADSP2 ADSP4 ADSP6 ADSP9
Extinguishers Capacity 1 Kg 2 Kg 4 Kg 6 Kg 9 Kg
Extinguishing Agent 40% ABC Dry Chemical Powder
Propellant Nitrogen
Operating Temperature -20˚C to + 60˚ C
Working Pressure 15 Bar
Test Pressure 30 Bar
Total Weight 1.8 Kg 3.7 Kg 7 Kg 10 Kg 14 Kg
Range of Discharge 4-5m 5-7m 6-8m 6.-8m 6-8m
Duration of Discharge 7-9 sec/td> 8-10sec/td> 11-13sec/td> 14-16sec/td> 16-18sec

Download

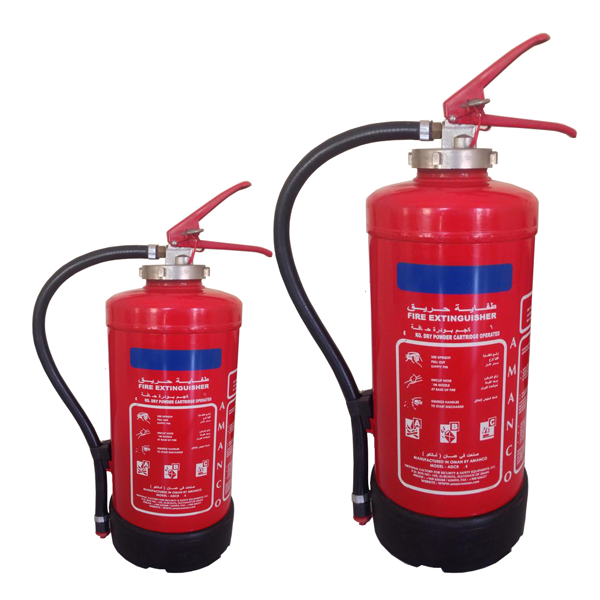

am

Features

• Rugged, durable, reliable fire protection.
• Highly effective on Class A, B, C & Electricals Fires.
• Incorporated with high pressure internal CO2, Cartridge.
• Easy maintenance.
• Field rechargeable.
• Simple and safe operation.
• Safety valve is provided on the main valve to ensure safety.
• Ideal for corrosive and harsh service conditions such as offshore platforms and marine jetties.
• Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.
• Labels in Arabic and English Language.

Model No ADPIC6 ADPIC9
Extinguishers Capacity 6 Kg 9 Kg
Extinguishing Agent 40% ABC Dry Chemical Powder
Propellant CO2
Operating Temperature -20˚ C to + 60˚ C
Working Pressure 15 Bar
Test Pressure 30 Bar
Total Weight 11 Kg 14 Kg
Range of Discharge 6-8m 6-8m
Duration Of Discharge 14-16sec 16-18sec

Download

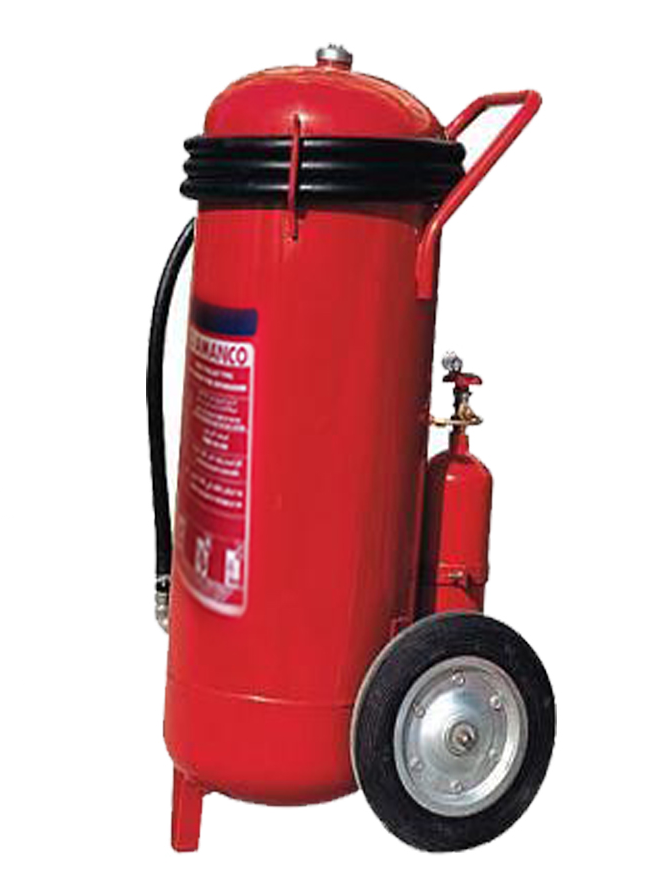

am

Features

• Fully controlled and easy operation by rust free bras valve
• Highly effective on Class A, B, C & Electricals Fires.
• Ready for instant use and simple to operate
• Cart and cylinder are made of rugged steel and welded
to meet extreme use conditions.
• Easily transportable
• Highly visible pressure – indicating gauge.
• Electrostatic powder painting after shot blasting ensures
maximum corrosion resistance.
• Labels in English and Arabic language

Model No ADSP-25 ADSP-50
Extinguishers Capacity 25Kg 50 Kg
Extinguishing Agent 40% ABC Dry Chemical Powder
Propellant Nitrogen
Working Pressure 15 Bar
Test Pressure 30 Bar
Total Weight 60 Kg 102 Kg
Range of Discharge 7-9m 7-9m
Duration Of Discharge 25-30sec 40-45sec

Download

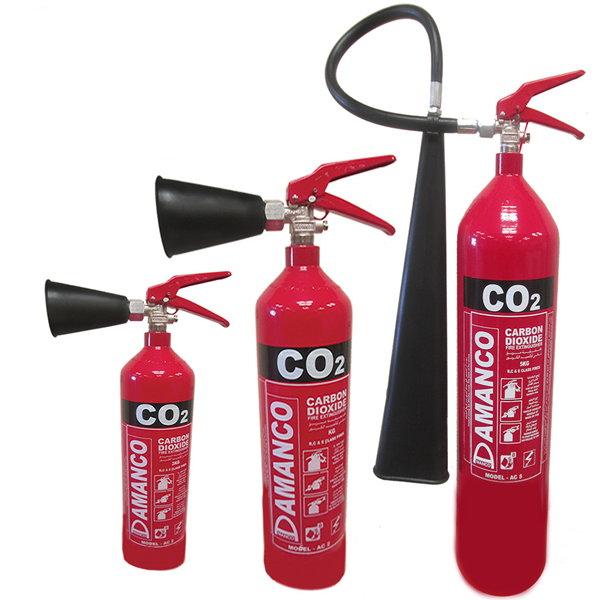

am

Features

• Simple operation and maintenance
• Exceptionally effective on class B, C and electrical fire
• Manufactured as per BS EN 3-7 standard.
• Portable and compact design
• Cylinder made of special steel to withstand high pressure
• Cylinder are 100% factory tested to 250 bar
• Easy grip valve for comfortable operation
• High grade brass head assembly ensures reliability and optimizes efficiency.
• Unbreakable rising pipe made of aluminum to ensure long lasting life.
• High gloss polyester powder paint stabilized after shot blasting ensures maximum corrosion resistance
• Safety valve is fitted in each extinguisher for maximum safety
• Special hanger for wall mounting

Model No AC2 AC5 AC6
Extinguishers Capacity 2Kgs5Kgs 6Kgs
Operating Temperature +20˚C to + 60˚C
Propellant Self Propelling
Working Pressure 55 to 60 Bar
Test Pressure 250 Bar
Total Weight 8 Kg 17Kgs 19Kgs
Range of Discharge 4-5m 5-6m 5-6m
Duration Of Discharge 7-9sec 11-13sec 13-15sec

Download

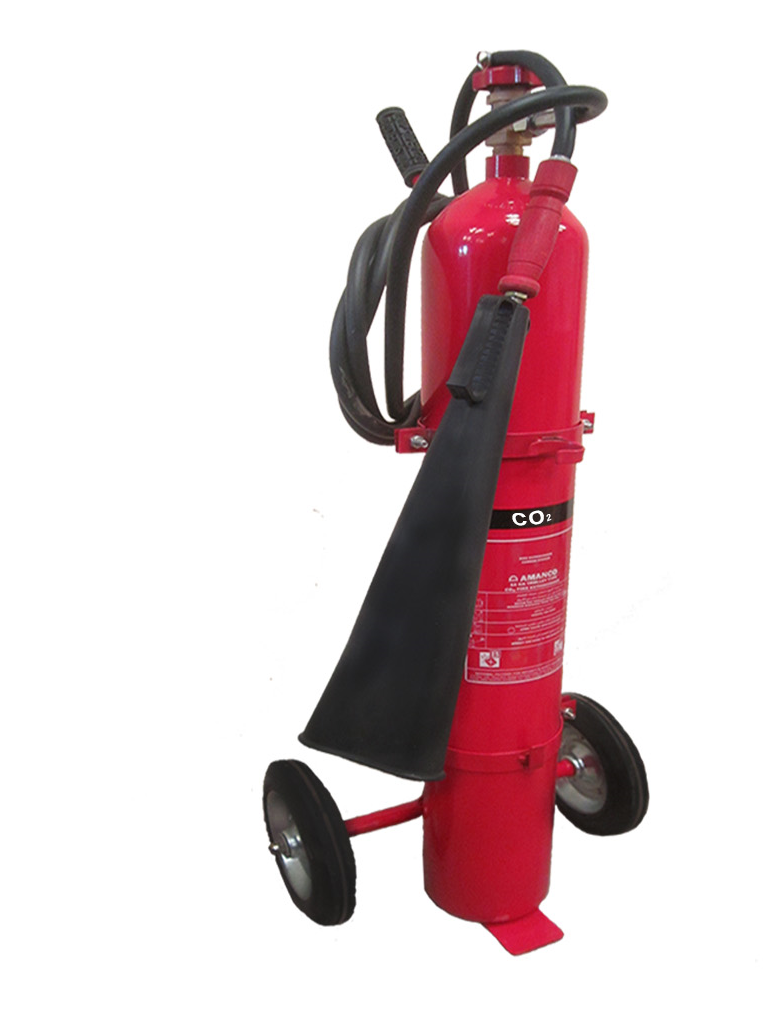

am

Features

• Simple operation and maintenance
• Cylinders are made of seamless carbon –manganese pipes which have high mechanical properties.
• Exceptionally effective on class B, C and electrical fire
• Manufactured as per BS EN 3-7 standard.
• Cylinder are 100% factory tested to 250 bar
• High grade brass head assembly ensures reliability and optimizes efficiency.
• Head valves are either lever operated or rotary operated
• Unbreakable rising pipe made of aluminum to ensure long lasting life.
• High gloss polyester powder paint stabilized after shot blasting ensures maximum corrosion resistance
• Safety valve is fitted in each extinguisher for maximum safety
• Special type cart for easy movement.
• Labels in Arabic and English Language.

Model No AC10 AC25
Extinguishers Capacity 10Kgs25Kgs
Operating Temperature +20˚C to + 60˚C
Propellant Self Propelling
Working Pressure 55 to 60 Bar
Test Pressure 250 Bar
Total Weight 43 Kg 78Kgs
Range of Discharge 4-5m 5-6m
Duration Of Discharge 7-9sec 11-13sec

Download

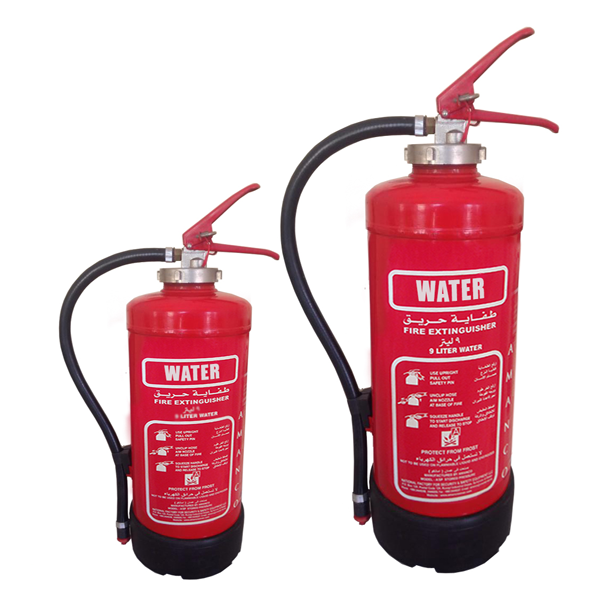

water1

Features

• Ready for instant use
• Exceptionally effective on class A fire
• Manufactured as per BS EN-3 standard.
• Portable and compact design
• Heavy duty steel cylinder
• Made of special CRCA sheet with argon / CO2 welding process
• Simple operation and maintenance
• Cylinder are 100% factory tested to 30 bar
• Easy grip valve for comfortable operation
• Nickel plated brass valve with reliability and long life
• Rugged PVC pick up tube enable smooth flow of the agent.
• Precision built mechanical pressure gauge
• Electrostatic powder painting after shot blasting ensures maximum corrosion resistance
• Internally coated with polyolefin & thermosetting polymer powder using whirl sintering process

Model No AWSP6 AWSP9
Extinguishers Capacity 6ltrs9Ltrs
Operating Temperature +5˚C to + 60˚C
Propellant Nitrogen
Working Pressure 14Bar
Test Pressure 30 Bar
Total Weight 1.8Kg 3.7Kg
Range of Discharge 6-8m 8-9m
Duration Of Discharge 16-20sec 22-24sec

Download

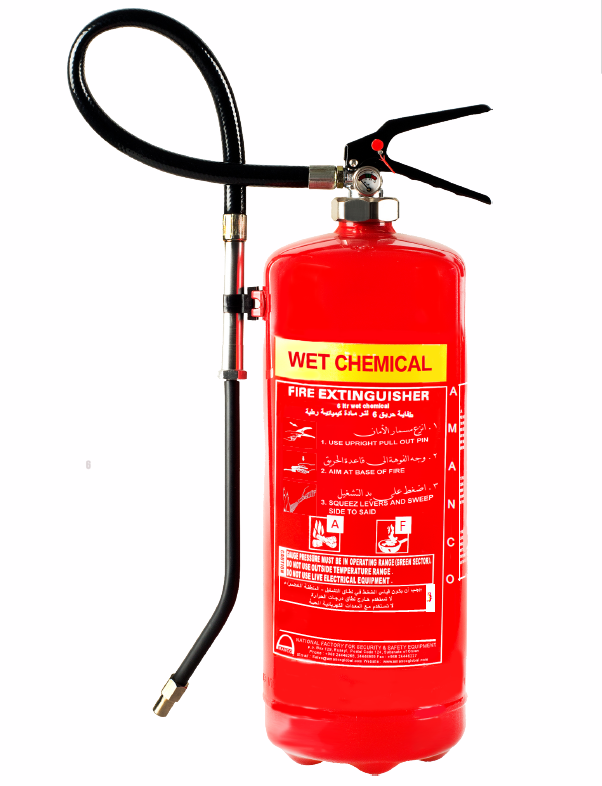

am

Features

• Simple operation and maintenance.
• Exceptionally effective on class A and F.
• Manufactured to European Standard BS EN3-7
• Portable and compact design.
• 15 bar working pressure.
• Cylinder made of special steel to withstand high pressures, tested at 30 bars.
• High-grade brass head assembly ensures reliability and optimizes efficiency.
• High gloss polyester powder painted stabilized after shot-blasting ensures corrosion resistance under extreme condition.
• Safety valve is fitted in each extinguisher for maximum safety.
• Discharge nozzle designed to produce a jet of extinguishing gas for fast fire suppression. • Special hangers for wall mounting.
• Lable in Arabic and English language.


Model No ASPK-6
Diameter(mm) 160
Cylinder Height(mm) 433
Cylinder Weight(KG) 2.8
Extinguisher weight(kg) 9.5
Filling charge 6L FUREX FF
Temperature +5˚C + 60˚C
Working pressure(bar) 15
Test pressure(bar) 30
Working Pressure 30
Fire rating 13A 75F

Download


am

Features

• Ready for instant use
• Exceptionally effective on class A fire
• Manufactured as per BS EN-3 standard.
• Portable and compact design
• Heavy duty steel Cylinder
• Made of special CRCA sheet with argon / CO2 welding process
• Simple operation and maintenance
• Cylinder are 100% factory tested to 30 bar
• Easy grip valve for comfortable operation
• Nickel plated brass valve with reliability and long life
• Rugged PVC pick up tube enable smooth flow of the agent.
• Precision built mechanical pressure gauge
• Electrostatic powder painting after shot blasting ensures maximum corrosion resistance
• Internally coated with polyolefin & thermosetting polymer powder using whirl sintering process
• Label in Arabic and English languages


Model No ASPK-6 AWSP9
Extinguisher Capacity 6ltrs 9Ltrs
Operating Temperature +5˚C to + 60˚C
Propellant Nitrogen
Working Pressure 14 Bar 14 Bar
Test Pressure 30 Bar
Total Weight 35-37sec
Operating Temperature 5˚C to 60˚C
Working Pressure 1.8Kg 3.7Kg
Range of Discharge 6-8m 8-9m
Duration of Discharge 16-20sec 22-24sec

Download
