The extreme compactness, trouble-free installation, uncomplicated programming procedures and simple end-user operation make this highly competitive control panel ideal for all small and medium applications, especially those applications where fast installation and programming are among the most important aspects of the system. The numerous functions (timers, equational logic, etc.), extensive flexibility (automatic output balancing, multifunction inputs, customizable outputs, gas function integration,etc.), and innovative connectivity capabilities (RS485 BUS for power supply stations, Internet connection, etc.), provide the tranquillity of knowing for sure that this powerful tool is capable of satisfying every need of every type of installation

System Overview

• Conventional fire-detection control panel
• Available with 2 zones, 4 zones expandable to 20, 4 zones expandable to 36
• Certified EN54 / EN54-2
• Certified EN12094-1 (Fire extinction)
• Supports up to 32 devices per zone • Manages SmartLetLoose/ONE Fire Extinction board (Function EN12094-1 Approved) • 1 supervised alarm output (NAC) • 1 output for communicator/dialler activation
• 1 interruptible power supply output
• 1 additional terminal per zone configurable as: open-collector output, supervised input, Gas detector input with 4-20mA interface
• Battery shutdown relay for deep discharge conditions
• Backlit graphic display for easy management of Installer/User interface
• 8 logical equations
• Automatic balancing of individual detector lines
• RS232 connector for system programming from a PC
• Programming software
• Easy system programming from the control panel
• Access key for Level 2 functions (EN54 compliant)
• Thermal probe for battery optimization
• Metal enclosure
• Mains power supply 230Vac

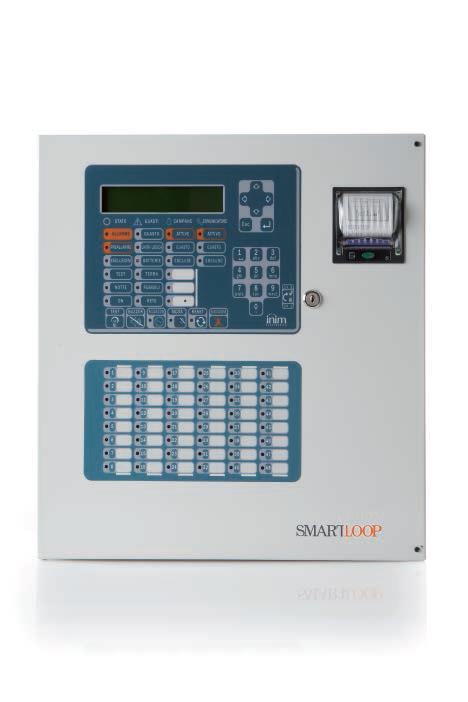

Conventional & Addressable system:

The operational superiority of the analogue addressable panel is rooted in the synergy of various state of- the-art technologies. The compactness, simple end-user operation, trouble-free installation and uncomplicated programming procedures make this highly competitive control panel from small domestic applications requiring 1 loop to large applications requiring 8 loops. At maximum configuration a panel can support 30 control panels (arranged in a token-ring) and, if you consider that each control panel can manage up to 8 loops, and that each loop can accommodate as many as 240 devices, it is clearly apparent that the cutting-edge technology of the panel has achieved excellence in application flexibility.

System Overview

• Analog-addressable fire control panel
• 2 loops expandable to 8 for 2080 expandable models 1 loop on non-expandable 1010 models
• All models in the SmartLoop series are EN54 Approved
• Multiprocessor hardware structure
• 32 bit main CPU
• OpenLoop Technology
• HorNet token- ring architecture
• Supports Emergency54 emergency configuration (CPU redundancy)
• Manages up to 30 panel token-ring network via the SmartLoop/NET board (accessory item)
• Easy remote access through SmartLAN board (accessory item)
• 2 or 4 wire loop connection
• Supports 240 devices per loop
• Manages a fire-suppression control panel on the RS485 BUS
• Manages SmartLine020-4EXT and SmartLine036-4EXT fire
• extinguishing control panels via RS485 BUS
• Manages up to 14 remote-control Repeater panels on the RS485
