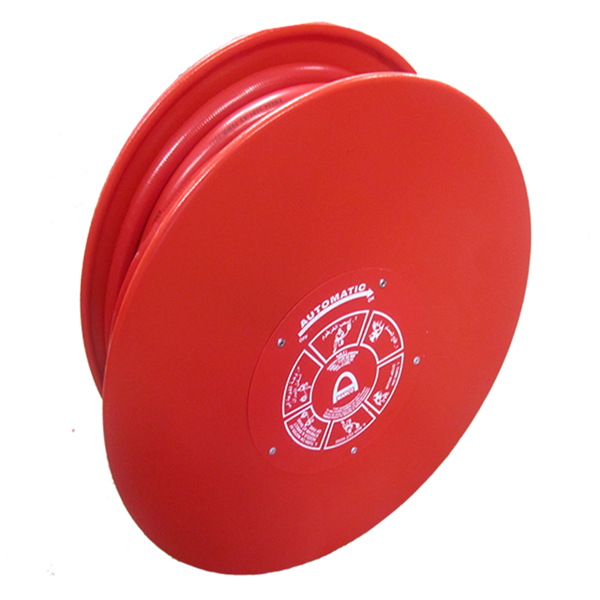

• Swinging type fire hose reels
(size - 1” x 30 mtr. / ¾” x 30 mtr. / Manual or Automatic)
• Manufactured as per BS EN 671-1 standard.
• Fire hose double braided, non collapsible and kink resistant
• Hose reel discs are manufactured using 1.2mm Mild steel sheets and has ribs that gave extra strength, which in turn avoid twisting.
• Hose reel drum painted with RAL 3020 red powder coating
Other colors are available upon request
• Plastic nozzle supplied has jet/spray/shut-off operations.
• Chrome plated brass nozzle is available upon request.
• Hose has working pressure of 10 bar .
• Brass chrome plated automatic valve mechanism , brass axle and bearing
• Inlet stop valve 1” size in made of brass and finished with chrome
• Each unit is hydrostatically tested at 18 bar.
• Swinging hose reel is mounted on an arm which swings 180° and the hose can be run out in all directions without a hose guide.
• In automatic models, the valve opens automatically within three revolutions of the reel.
• Fire hose reel is an efficient and reliable fire- fighting unit suitable for use in all types of buildings.
Model No | Size Of Hose | Construction Of DISC | Valve Opening | Wall/ Cabinet Mounted | ||||
AFHR-08-A | 19mm Dia ( ¾” ) Length = 30 m | Steel Sheet | Manual | Wall/ Cabinet Mounted | ||||
AFHR-21 | 19mm Dia ( ¾” ) Length = 30 m | Steel Sheet | Automatic | Wall/ Cabinet Mounted | ||||
AFHR-19 | 125mm Dia ( 1” ) Length = 30 m | Steel Sheet | Automatic | Wall/ Cabinet Mounted | ||||
AFHR-07-B | 125mm Dia ( 1” ) Length = 30 m | Steel Sheet | Manual | Wall/ Cabinet Mounted | ||||
AFHR-5 | 19mm Dia ( ¾” ) Length = 45 m | Steel Sheet | Manual | Wall/ Cabinet Mounted | ||||
AFHR-6 | 19mm Dia ( ¾” ) Length = 45 m | Steel Sheet | Automatic | Wall/ Cabinet Mounted |

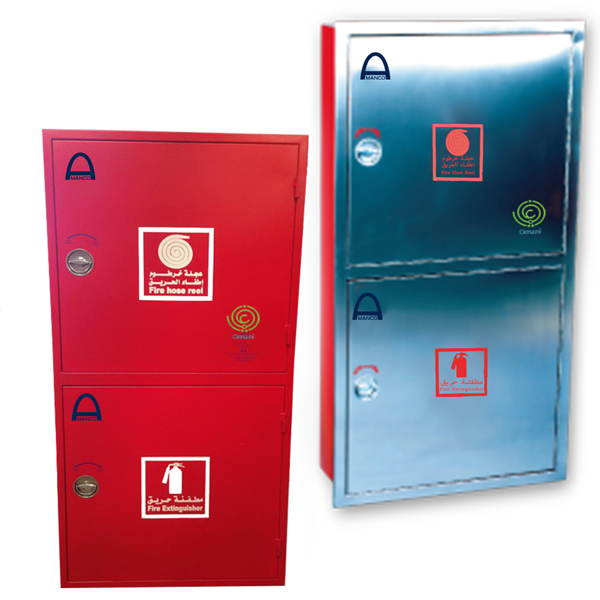

• Cabinet can be with 1mm, 1.2mm / 1.5mm Stainless Steel Sheet / SS Sheet
• Recessed type door lock & handle with chrome plating
• Cabinets painted with red electrostatic powder coating
Others colours are available on request
• Upper compartment consist of: hose reels with. 1” x 30 mtr.hose , ¾” x 30 mtr or ¾” x 45 mtr hose.
Lower compartment suitable for : 2.5” x 100 feet polyester fire hose or for 3 portable Fire Extinguishers.
Other sizes and length available on request.
• Wired glass MDF Doors are available on request.
• Labels in Arabic and English Language.
Download

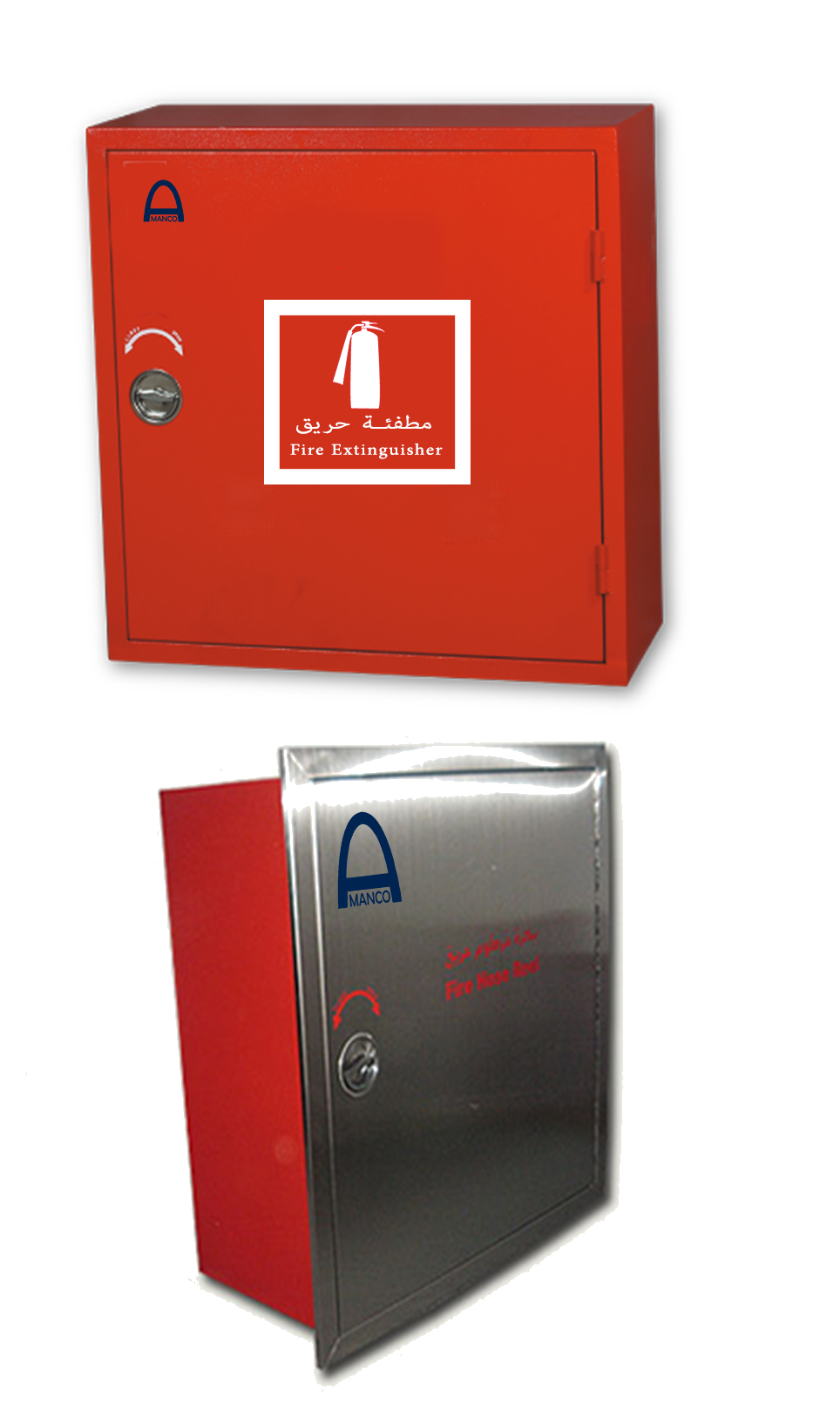

• Cabinet with door of 1mm, 1.2mm & 1.5mm Stainless Steel Sheet or MS
• Recessed type door lock & handle with chrome plating
• Cabinet painted red electrostatic powder coating.
Others colours available on request.
• Wired glass doors are available on request.
• Cabinet is suitable for 3 portable Fire Extinguishers.
• Labels in Arabic and English Language.
Model No | Cabinet Size | Material Of Construction | Cabinet Mounted | |||
ABIC -1 | 800 x 800 x 250mm | Steel Sheet | Surface Mounted | |||
ABIC -2 | 800 x 800 x 200mm | Steel Sheet | Recessed | |||
ABIC -3 | 800 x 800 x 250mm | Stainless Steel Sheet Brush Finish | Surface Mounted | |||
ABIC -4 | 800 x 800 x 200mm | Stainless Steel Sheet Brush Finish | Recessed |

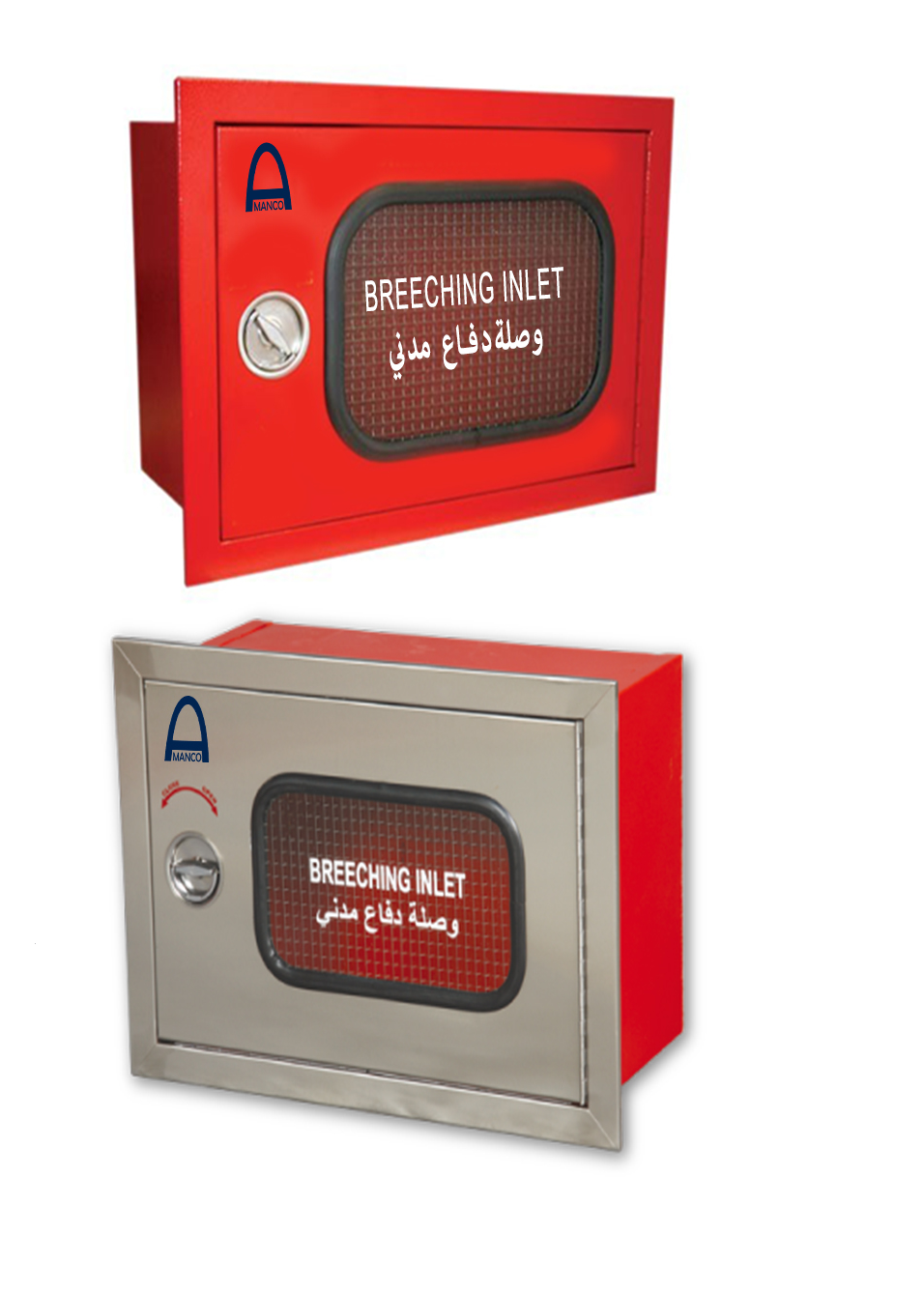

• Cabinet with door of 1mm, 1.2mm & 1.5mm Stainless Steel Sheet or MS
• Recessed type door lock & handle with chrome plating
• Cabinet painted red electrostatic powder coating.
Others colours are available on request.
• Wired glass doors are available on request.
• Cabinet is suitable for 2 and 4 Way Breeching Inlet.
• Labels in Arabic and English Language.
Model No | Cabinet Size | Material Of Construction | Cabinet Mounted | |||
ABIC -1 | 400 x 600 x 300 mm | Steel Sheet | Recessed | |||
ABIC -2 | 400 x 600 x 300 mm | Stainless Steel Sheet Brush Finish | Recessed |

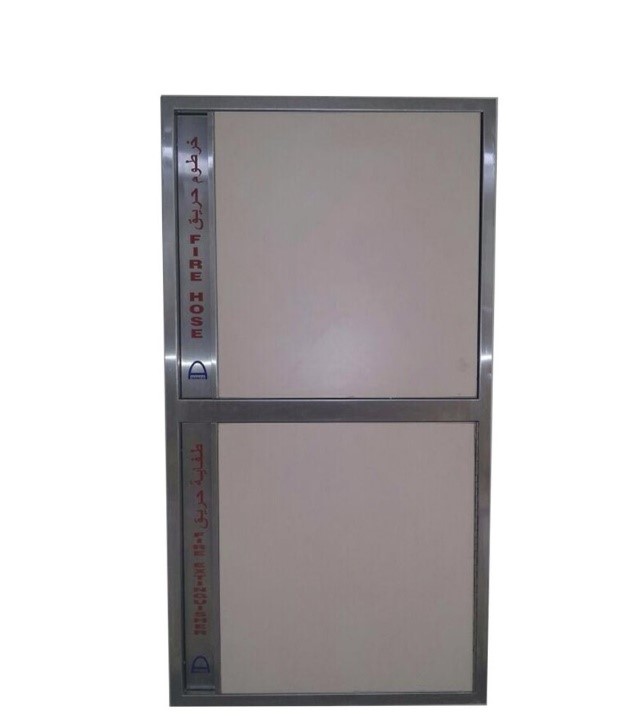

• AMANCO Fire Hose Rack Cabinet are manufactured from steel or stainless steel, with thickness of 1 mm to 2 mm. Recessed type door lock & handle with chrome plating.
• Electrostatic powder painted and oven baked to 200°C for appearance and protection from rust.
• Cabinets can be surface mounted, recessed or semi-recessed. Cabinets of stainless steel also available with hairline or mirror finish.
